DynaPath Readouts

DynaPath offers the WinDelta CNC Control system for Machine Tool Applications

The WinDelta Control system is a PC-based, fully closed loop CNC control solution featuring advanced motion control, built-in software PLC, and a Windows-based HMI. The CNC hardware can be configured for up to 4-axis simultaneous motion control using an analog voltage command interface or an optional digital interface. The system includes standard built-in motion, PLC, and HMI modules, with the capability for custom development.

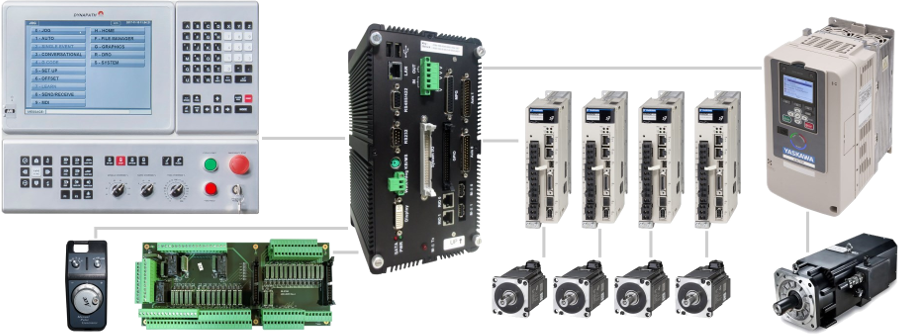

WinDelta CNC System

Control Features

  • 2x USB/1x LAN for networking and file transfer
  • 10.4"/12.1" Touchscreen LCD for intuitive operation
  • 8GB SSD part program file storage
  • DRO + Semi-Auto Mode for basic operation
  • Conversational Programming + DXF Import for shop floor programming
  • Standard G/M-Code support for running CAD/CAM posts
  • Advanced motion control for high speed, high precision machining

Powerful + Versatile Operation

With WinDelta, most jobs can be performed with built-in DRO/Semi-Auto functions or programmed on the control using the Conversational Editor with DXF Import. WinDelta also natively supports standard G-Code and custom macros, so advanced jobs posted from CAD/CAMs can also be run directly on the control.Conversational ProgrammingThe built-in Conversational Editor allows quick and easy part programming directly on the control without knowledge of G-Code. Progammable events include:

  • Drill, Bore, Tap Cycles
  • Circle, Frame, Irregular, Open Contour Milling
  • Circle, Frame, Irregular, Tapered Pocket Milling
  • Profile, Face Turning and Grooving
  • Threading Cycles
  • Pattern Events

DynaPath also offers Retrofits and Machine Control Packages.

With a Control solution for new machines or retrofits, the Machine Control Package is a complete CNC solution for new machine integration or retrofit. The console, pendant arm, electrical cabinet, drives, and motors are offered with many options and sizes for a tailored-fit custom solution.

Call Windsor Industrial Sales today at 815-520-6643 to discuss how DynaPath's
WinDelta system can improve programming and setup times in your shop.
