DynaPath has a complete line of Mills including Knee Mills, Bed Mills, High Speed Mills and High Speed Graphite Mills. DynaPath also makes Slant Bed and Flat Bed Lathes with a model suitable for tool rooms, job shops, prototyping, and production.

 Knee Mill

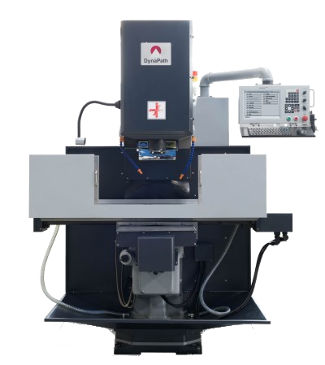

VK-Series Knee Mill

3-Axis CNC for Job Shops, Tool Rooms, and Small Lot Production Operations Featuring:
  • 4-Station Automatic Tool Changer.
  • CNC Rigid Tapping.
  • Direct Drive X, Y, Z, and Spindle.
  • Up to 7000 RPM Spindle Speed.
WinDelta CNC Control with:
  • Manual DRO mode, Conversational Programming, DXF Import, and Standard ISO G-Code support.
 Bed Mill

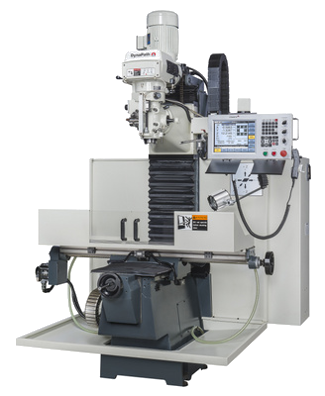

A-Series Bed Mill

3-Axis CNC for Job Shops, Tool Rooms, and Production Operations
Featuring WinDelta CNC Control with Manual DRO mode, Conversational Programming, DXF Import, and Standard ISO G-Code programming.

  • Manual/DRO + Conversational/DXF + Standard G-Code programming enables the versatility of operating the machine manually, programming at the shop floor, importing DXF, or importing standard G-Code programs.
  • MPG RUN feature allows easing into a part program by synchronizing machine feed motion with the turning of the electronic MPG handwheel.
  • Program RETRACE feature allows starting the part program at any specified block
    • .
High Speed Mill

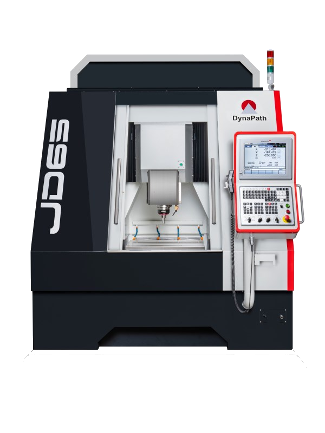

HSM-Series High Speed Mills

Featuring High Speed Spindle + Standard G-Code + Advanced Path Planning

DynaPath High Speed Mills excel in high speed machining with fine tools, quality surface finish for electrode or mold making, and high-precision milling for small parts manufacturing. The standard 24,000 RPM spindle features a BT-30 taper and comes with air purge. The maximum rapid speed is 15 m/min (590 ipm) while the maximum cutting feed is up to 10 m/min (400 ipm).
 High Speed Graphite Mill

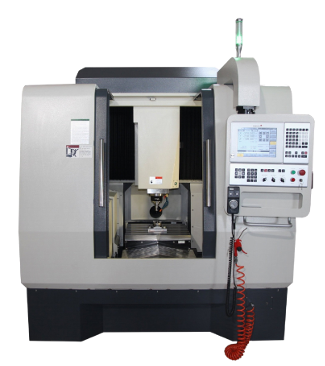

HSMG-Series Graphite Machining Center

Featuring High Speed Spindle + Standard G-Code + Advanced Path Planning

Graphite Mill Features
DynaPath Graphite Mills are purpose built machines specifically designed to excel in high speed machining with fine tools to produce quality surface finishes in making graphite electrodes for mold making. The maximum rapid speed is 15 m/min (590 ipm) and the maximum cutting feed is up to 10 m/min (400 ipm).

Graphite Protection
To protect against highly abrasive and conductive graphite chips and dust, each axis is equipped with specially designed End Seals, Underside Seals, Internal Seals, and Metal Wipers which isolate the ball screws and linear guides from damage due to graphite dust.
 Slant Bed Lathe

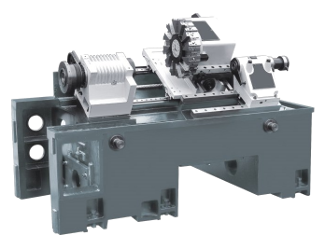

TS-Series Slant Bed Lathe

2-Axis Slant Bed Lathe for Job Shops, Tool Rooms, and Production
Featuring WinDelta CNC Control with Manual DRO mode, Conversational Programming, DXF Import, and Standard ISO G-Code programming.

Manual/DRO + Conversational/DXF + Standard G-Code programming enables the versatility of operating the machine manually, programming at the shop floor, importing DXF, or importing standard G-Code programs.While the MPG RUN feature allows easing into a part program by synchronizing machine feed motion with the turning of the electronic MPG handwheel.The Program RETRACE feature allows starting the part program at any specified block.
 Flat Bed Lathe

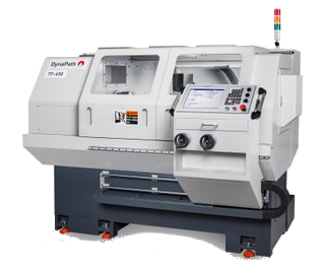

TF-Series Flat Bed Lathe

2+1 Axis Box Way Flat Bed Lathe for Job Shops, Tool Rooms, and Prototyping
The TF series flat bed type lathe machines are designed for versatility. The X and Z axes utilize precision ground box ways with precision ball screws. The spindle motor is housed in a rigid casing fixed to the frame for enhanced rigidity. A tailstock with quill allows set up for long cylindrical parts. An optional X-Axis secondary spindle offers mill-turn functionality. The machine is suitable for turning, grooving, drilling, facing, threading, tapping, keyway milling, face milling, and cylindrical milling of precision parts.





Call Windsor Industrial Sales today at 815-520-6643 to discuss how
DynaPath's mill or lathe system can work in your shop.
